Cree LED J Series® 2835 LEDs
Cree LED J Series® 2835 LEDs are optimized for low‑density lighting applications where high efficacy and smooth appearance are critical. The 2835 LEDs employ the 3V configuration and come in the industry-standard 2.8mm x 3.5mm x 0.7mm package. These LEDs feature flux and chromaticity at 25°C, offer 6500K to 2200K Correlated Color Temperature (CCT) range, and 70, 80, 90, and 95 Color Rendering Index (CRI). The 2835 LEDs are ideally used in downlights, troffers, lamps, and panel lights.
Features
- Industry‑compatible package
- 2.8mm x 3.5mm x 0.7mm dimensions
- 3V configuration
- 6500K to 2200K ANSI CCTs available
- 70, 80, and 90 CRI minimum available for 6500K to 2700K CCTs
- 80 and 90 CRI minimum available for 2200K CCT
- 95 CRI minimum available for 6500K, 5000K, 4000K, 3500K, 3000K, and 2700K
- Flux and chromaticity binned at 25°C
- Broad range of performance options
- RoHS and REACH compliant
- UL-recognized component (E495478)
Applications
- Troffers
- Linear
- High/low bay
- Downlights
- Lamps
Videos

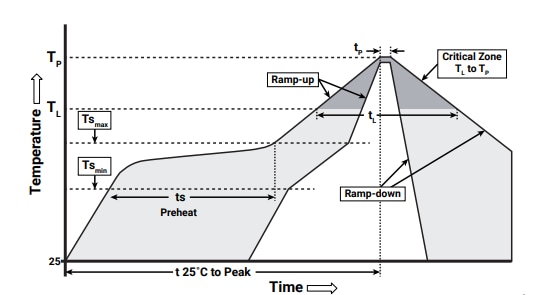

Reflow Soldering Characteristics
Related LEDs
Cree LED General Indoor Lighting
Offers a complete portfolio of LEDs optimized for indoor lighting applications.
Cree LED Architectural & Entertainment Lighting
Brings excitement and drama to building exteriors, landmarks, concerts, and other live events.
Cree LED Transportation Lighting
Targets Automotive/Emergency Vehicle Lighting (EVL) applications that require maximum light output.
Cree LED Human Centric Lighting/Circadian Stimulus
J Series® 2835 3V N-Class LEDs allow adjustment of the light spectrum for circadian entrainment.
Cree LED Đèn LED MidPower Series™ J
Có hiệu suất cao, tiêu thụ điện năng thấp và giá trị tuyệt vời trong một gói đáng tin cậy.
Cree LED J Series® 2835 J-/N-Class Precision Dimming LEDs
Combines high efficacy and excellent value in a 2.8mm x 3.5mm x 0.7mm reliable package.
Cree LED PCBAs tuyến tính LED tiêu chuẩn VB192/VB256
Configured with J Series® 2835 N Class, J Class, or G Class LEDs.
| Mã Phụ tùng | Bảng dữ liệu | Bước sóng/Nhiệt độ màu | Thông lượng sáng/Thông lượng bức xạ | Chỉ số kết xuất màu - CRI |
|---|---|---|---|---|
| JE2835BWT-N-H50GA0000-N0000001 |  |
5000 K | 75 lm | 80 |
| JE2835BWT-N-H40GA0000-N0000001 | |
4000 K | 75 lm | 80 |
| JE2835BWT-N-U30GA0000-N0000001 | |
3000 K | 60 lm | 90 |
| JB2835BWT-G-H22GA0000-N0000001 | |
2200 K | 25 lm | 80 |
| JE2835BWT-N-U50GA0000-N0000001 | |
5000 K | 63 lm | 90 |
| JB2835BWT-G-H30GA0000-N0000001 | |
3000 K | 27 lm | 80 |
| JB2835BWT-G-U40GA0000-N0000001 | |
4000 K | 25 lm | 90 |
| JE2835BWT-N-H35GA0000-N0000001 | |
3500 K | 72 lm | 80 |
| JE2835BWT-N-H57GA0000-N0000001 | |
5700 K | 75 lm | 80 |
| JB2835BWT-G-H40EA0000-N000P001 | |
4000 K | 33 lm | 80 |
