Diodes Incorporated AL8853 High-Performance Boost LED Controller

Diodes Incorporated AL8853 High-Performance Boost LED Controller is a highly integrated and cost-effective LED driver-controller, ideal for applications where the required LED chain length exceeds the input power rail. The Diodes Incorporated AL8853 contains a PWM boost driver, which uses current-mode control and fixed-frequency operation to regulate the LED current. The LED current is sensed through an external current sense resistor. The voltage across the sensing resistor is compared with a reference level of 200mV. The error is amplified to control the pulse width of the power switch to regulate the current flowing through the LED. The AL8853 offers PWM-to-analog dimming for a wide range of dimming control.

The AL8853 LED Driver has comprehensive protection features, including power MOSFET Over Current Protection (OCP), Output Over Voltage Protection (OVP), Diode and Inductor short protection, LED cathode short to GND protection, IC power supply Under-Voltage Lockout (UVLO), LED open protection, VOUT short protection and Over Temperature Protection (OTP).

The AL8853 is available in the SO-8 (Type TH2) package, with a -40°C to +125°C operating temperature range.

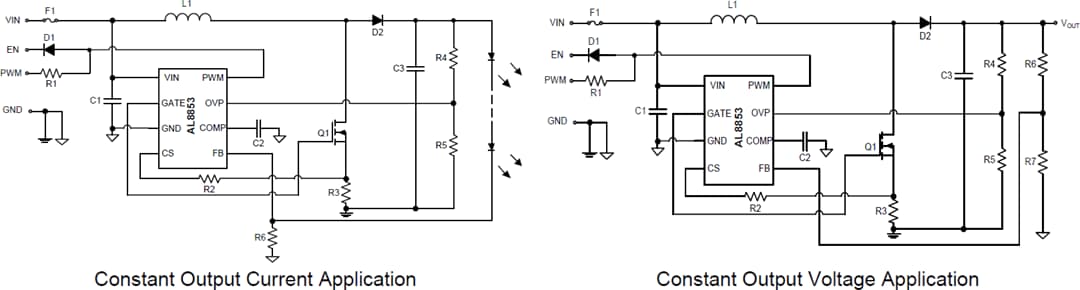

Features

Wide 6.0V to 40V input voltage range
High 200mV/±3% precision feedback reference voltage
Current mode PWM controller with good dynamic response
PWM-to-analog dimming mode
Boost topology
1000kHz maximum switching frequency
Operating temperature range of -40°C to +125°C
SO-8 (Type TH2) package
Lead-free and fully RoHS compliant
Halogen and antimony-free "Green" device

Built-in comprehensive protection
- Under Voltage Lock Out (UVLO)
- Output Over Voltage Protection (OVP)
- Power MOSFET Over Current Protection (OCP)
- Diode and Inductor Short Protection
- LED Cathode Short to GND Protection
- LED Open Protection
- V_OUT Short Protection
- Over Temperature Protection (OTP)
