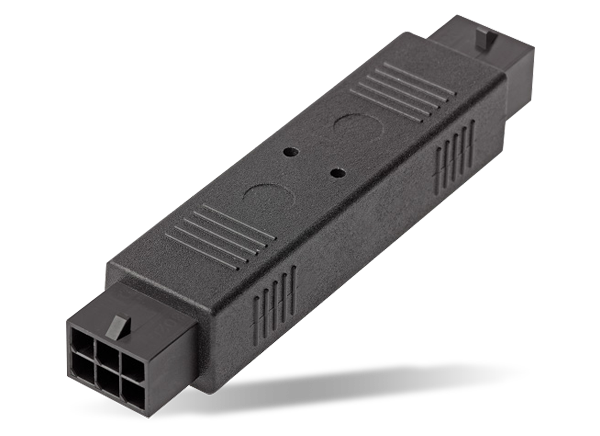

Molex Micro-Fit Overmolded Plug Adapters
Molex Micro-Fit Overmolded Plug Adapters eliminate the need to stock both receptacle and plug version of cables. Available in 2-row configurations of 2, 4, 6, 8, and 10 circuit models, these adapters unify femable cable assemblies together, preventing crimping issues in the process. The molex micro-fit plug adapters use a polybutylene terephthalate (PBT) housing and are ideal for car infotainment systems, appliances like washers and ovens, and charging stations.
Features
- Acts as cable extenders for daisy-chaining multiple female cabes together
- Supports cables with 2 to 10 circuits (2-row configuration)
- Eliminates crimping issues in the field
- Eliminates need to stock various levels of cable lengths
Applications
- Home appliances
- IoT devices
- Furniture
- Charging stations
- Handheld devices
- LED lighting
- Automotive infotainment ecosystems

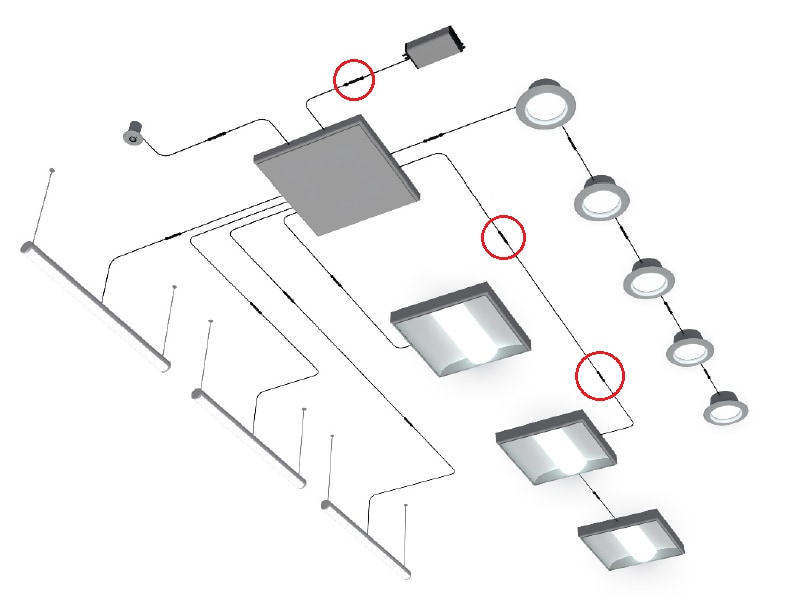

Application Example
Associated Product
Molex Micro-Fit Overmolded Cable Assemblies
Double-ended with strain relief in multiple circuit sizes and lengths for rugged signal connections.
Molex Micro-Fit 3.0 Connector System
For high contact density signal or power, features miniature 3mm pitch and up to 8.5A current.
View Results ( 5 ) Page
| Mã Phụ tùng | Bảng dữ liệu | Số vị trí | Định mức dòng |
|---|---|---|---|
| 245132-0699 |  |
6 Position | 3.5 A |
| 245132-0499 | |
4 Position | 3.5 A |
| 245132-0299 | |
2 Position | 4.5 A |
| 245132-0899 | |
8 Position | 3 A |
| 245132-1099 | |
10 Position | 3 A |
Đã phát hành: 2018-05-17
| Đã cập nhật: 2025-03-03
