Molex Quad-Row Board-to-Board Connectors

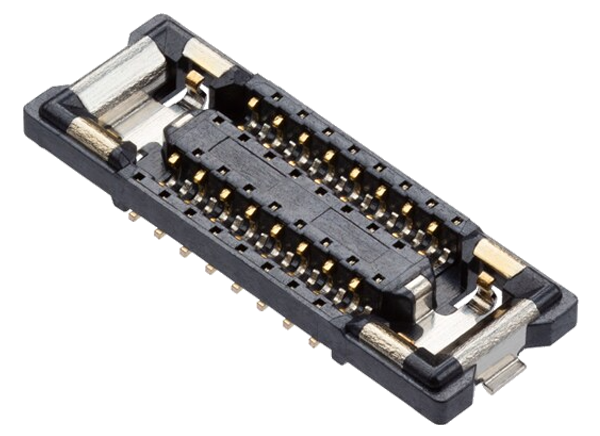

Molex Quad-Row Board-to-Board Connectors offer a pitch of 0.175mm, a 3A current rating, and a compact design for space-constrained applications. These connectors feature an armored and insert-molded nail design that provides robustness and protection in the interior cover. The quad-row connectors have LCP UL 94V-0 housing, copper alloy contacts, and an operating temperature range of -40°C to +85°C. Molex Quad-Row Board-to-Board Connectors are suitable for smartphones, wearable devices, drones, patient-monitoring systems, aircraft avionics, smart home devices, and unmanned vehicles.
Features
- Armored and insert-molded nail
- High performance
- Robust design
- Reliability
- Easy operability
- World’s smallest board-to-board connector
- 3.0A of current in highly compact package
- First-ever staggered circuit layout connector
- 30% space savings over conventional connector designs
Applications
- Consumer
- Smartphones
- Tablet PCs
- Wearable devices
- Portable audio and navigation equipment
- IoT and smart home devices
- AR/VR devices
- Drones
- Medical
- Patient monitoring systems
- Therapeutic and surgical equipment
- Defense
- Unmanned vehicles
- Aircraft avionics
Specifications
- 0.175mm pitch
- 3A current rating
- 32 to 36 circuits
- 50V voltage rating
- 250V dielectric withstanding voltage
- 100MΩ insulation resistance
- 0.60mm mated height
- 2.0mm width
- 30 cycles of durability
- LCP UL 94V-0 housing
- Copper alloy contacts
- -40°C to +85°C operating temperature range
Videos
Overview
Related Connectors
Molex Board-to-Board Connectors
Variety of configurations for microminiature, high-speed, high-density, & high-power applications.
Related Solutions
Molex MedTech Monitoring Solutions
Support remote monitoring and communication solutions with the use of Telehealth.
