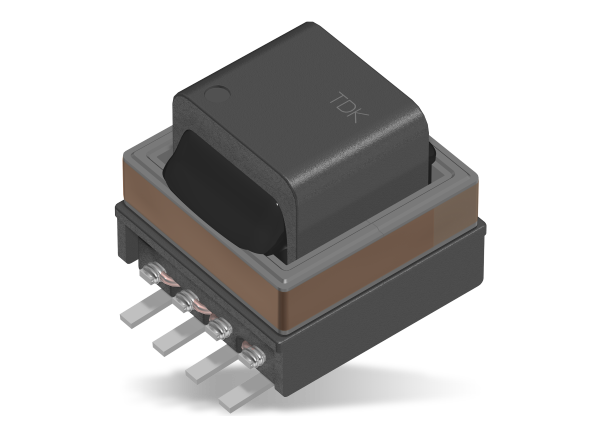

TDK VST Automotive Grade SMD Transformers
TDK VST Automotive Grade SMD Transformers offer stable performance and feature an operating temperature range of -40°C to +130°C. These transformers are AEC-Q200 qualified, making them ideal for Battery Management Systems (BMS). The VST transformers offer a high withstand voltage. Its unique structure provides an improvement in anti-vibration performance and high-level coplanarity. Typical applications include lithium-ion battery voltage monitoring systems for xEVs and switching current detection in onboard DC/DC converters and chargers.
Features
- Common
- AEC-Q200 qualified
- -40°C to +130°C operating temperature range (including self-temperature rise)
- VST10/9EE-202S2P4
- SMD pulse transformer with high withstand voltage
- Improved anti-vibration performance and high-level coplanarity
- VST10/9EE-200S1C2
- High flux density cores have been adopted to achieve miniaturization
- Can make measurements of up to 40A peak
- VST10/9EE-20xS1C2
- Current transformers for SMD-type power circuits using ferrite materials
- High flux density cores achieve miniaturization
- Can make measurements of up to 30A peak
Applications
- Switching current detection in onboard DC/DC converters and chargers
- Lithium-ion battery voltage monitoring system for xEVs
