Microchip DM320005 Multimedia Expansion Board / DM183026-2 mTouch™ Capacitive Touch Evaluation Kit

The Microchip Technology DM320005 Multimedia Expansion Board and DM183026-2 enhanced mTouch™ Cap Touch Evaluation Kit are new development tools for adding advanced human interfaces to designs based around PIC32 32-bit microcontrollers (MCUs). The Microchip Technology Multimedia Expansion Board enables development of highly interactive, graphics-based interfaces with network connectivity. The Microchip Technology enhanced mTouch Cap Touch Evaluation Kit adds a new board for implementing capacitive touch sensing with the PIC32. These kits for PIC32 MCUs make it easy and cost effective for embedded designers to develop a broad range of consumer and industrial applications that require intuitive human interfaces. The Multimedia Expansion Board is a modular add-on to any PIC32 Starter Kit. The DM183026-2 enhanced mTouch Cap Touch Evaluation Kit comes equipped with capacitive touch-sensing keys and sliders to let designers evaluate this interface in their applications using the Windows OS-based mTouch Diagnostic Tool.

Expansion Board Features

Front-Side of the Board:

3.2 inch (8.1 cm) QVGA touch screen display with backlight
Five user-controlled LEDs
Four-way joystick (S2)
Fire button (S1)
Headphone jack
Line output jack
Microphone input jack
Power LED
I/O expansion connector

Back Side of the Board:

Solomon Systech Graphics Controller (SSD1926)
microSD card slot
Regulated 3.3V and 1.8V power supply for powering the board via a starter kit or 9-14V power supply
Accelerometer and temperature sensor (BMA150)
24LC08 EEPROM
2 MB SPI Flash (SST25VF016)
24-bit stereo audio codec (WM8731)
CPLD for SPI and Chip Select configuration
PIC32 starter kit connector
Integrated 802.11 wireless connectivity

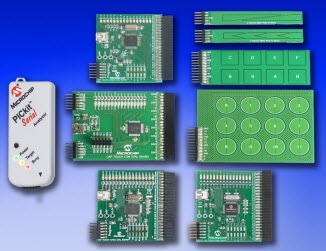

Cap Touch Eval Kit Features
