Analog Devices / Maxim Integrated TMC6200 Development Tools
Analog Devices / Maxim Integrated TMC6200 Development Tools are designed to facilitate the evaluation of the TMC6200 devices. The TMC6200 3-Half Bridge Gate Drivers are high-power gate drivers for PMSM servo or BLDC motors. The TMC6200-BOB Breakout Board offers SPI configuration and control via 3-phase PWM. The TMC6200-EVAL Board is part of Analog Devices' user-friendly plug-in system for chip evaluation.
Applications
- PMSM FOC drives and BLDC motors
- Robotics
- CNC machines
- Industrial drives
- LEV
- Factory automation
- Blowers
- Pumps
Associated Products
Analog Devices / Maxim Integrated TMC6200 3-Half Bridge Gate Driver
A high-power gate-driver for PMSM servo or BLDC motors.
Additional Resources
TMC6200-BOB Pinout

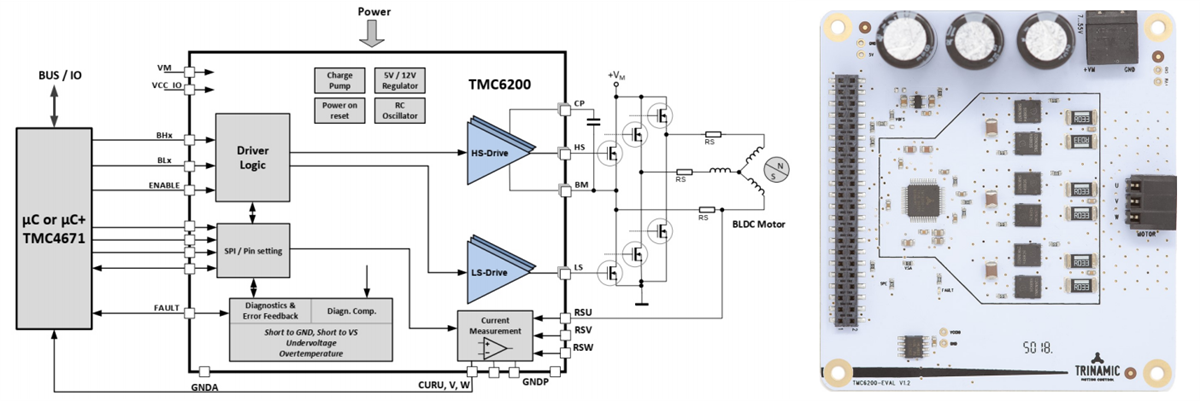

TMC6200-EVAL Block Diagram
Videos
Đã phát hành: 2021-03-26
| Đã cập nhật: 2026-02-03
