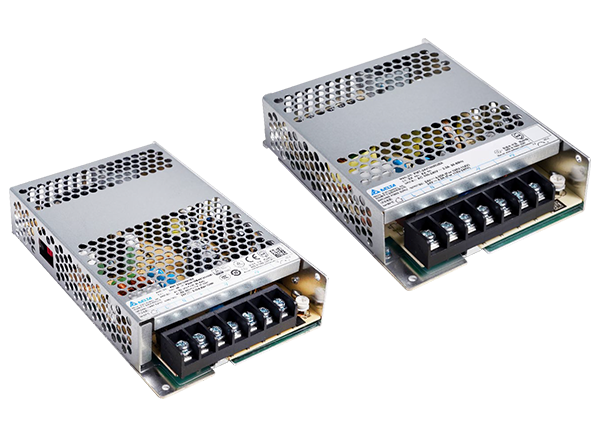

Delta Electronics PMT2 Low-Profile Panel-Mount Power Supplies
Delta Electronics PMT2 Low-Profile Panel-Mount Power Supplies offer power ratings of 35W, 50W, 75W, 100W, 150W, 350W single output, and 75W dual output. A wide range of 12V to 48V outputs are available for the 35W to 350W model range, and two 75W dual output models are available in 5V/12V and 5V/24V. The enclosed units have a low profile of ≤30mm and withstand shock and vibration requirements (per IEC 60068-2-27 and IEC 60068-2-6, respectively). These single-phase devices operate in a wide -30°C to +70°C temperature range. Delta Electronics PMT2 Low-Profile Panel-Mount Power Supplies feature lightning surge immunity, meeting IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV) requirements. Safety approvals include IEC/EN/UL 62368-1 and IEC 60950-1, while most models meet IEC/EN 60335-1 and IEC/EN 61558-2-16 household electrical appliances safety approvals. EMI standard complies with EN 55032, Class B.
Features
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 (except 350W models)
- OVC III and Pollution Degree 3 (except 350W models)
- High MTBF of >700,000hrs per Telcordia SR-332
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
Applications
- Factory automation
- Packaging machines
- Conveyor systems
- Wave soldering machines
- Machine automation
- Robotic arms
- Machine tools
- Injection molding machines
- Computerized numerically controlled (CNC) lathes
- Building automation
- Escalators and elevators
- HVAC control
- Access control
- CCTV surveillance
- Automatic gates
- Security systems
- Process automation
- Petrochemicals plants
- Oil refineries
- Wastewater treatment
- Test and measurement
- Spectrum analyzers
- Oscillators
- AC power sources
- Household appliances
- Coffee machines
- Water dispensers
- Vending machines
- Ovens
- Dishwashers / dryers
Specifications
- ≤30mm height
- 90VAC to 264VAC input voltage range
- 12V to 48V output voltage range
- 0.8A to 29A output current range
- 36W to 350.4W output power range
- <0.3W to <0.75W no-load power consumption
- -30°C to +70°C operating temperature range (supports -40°C cold start)
