Diodes Incorporated AP22919Q 90mΩ Switch
Diodes Incorporated AP22919Q 90mΩ Switch integrates a P-channel MOSFET with an input voltage range of 1.6V to 5.5V and switch currents up to 1.5A. The AP22919Q single-channel load switch has a controlled turn-on slew rate. The AP22919Q controls the ON state with a digital input capable of interfacing directly with low-voltage control signals.
When power is first applied, a Smart Pulldown keeps the ON pin from floating until system sequencing is complete. Once the pin is intentionally driven High (>VIH), the Smart Pulldown will be disconnected to prevent unnecessary power loss. The self-protected AP22919Q guards against short-circuit events on the device's output. The device additionally has thermal shutdown protection to prevent damage from overheating.
The Diodes Inc AP22919Q is housed in a standard SOT363 package.
Features
- AEC-Q100 qualification compliance with device temperature Grade 1 (-40°C to +125°C ambient operating temperature range)
- 1.6V to 5.5V input voltage range
- 1.5A maximum continuous current
- Low RON
- Typ 90mΩ at VIN = 5V
- Typ 110mΩ at VIN = 3.6V
- Typ 180mΩ at VIN = 1.8V
- 3A typ output short protection
- Slow turn ON timing to limit inrush current
- 5V turn ON (tON) at 2.3ms at 2.6mV/µs
- 3.6V turn ON (tON) at 2.0ms at 2.4mV/µs
- 1.8V turn ON (tON) at 1.4ms at 2.2mV/µs
- Low quiescent current of typ 7µA
- Low shutdown current of typ 45nA
- Adjustable Quick Output Discharge (QOD) and internal QOD resistance = typ 10Ω
- Smart ON pin pulldown:
- ON ≥ VIH max 100nA of ION
- ON ≤ VIL typ 530kΩ of RPD
- Active HIGH operation
- Thermal shutdown
- Smaller form factor package SOT363 (standard)
- Totally lead-free and fully RoHS compliant
- Halogen and antimony-free “Green” device
Applications
- Infotainment and cluster head units
- Automotive cluster displays
- ADAS surround view system ECU
- Body control modules and gateways

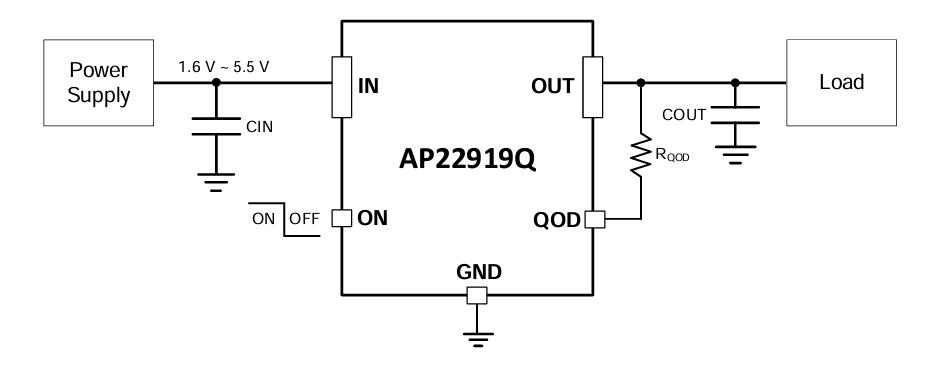

Typical Applications Circuit
Pin Assignments
Functional Block Diagram
