Seiko Instruments TS920E TS Lithium Rechargeable Battery
Seiko Instruments TS920E Lithium Rechargeable Battery is a high-capacity, low-voltage rechargeable battery ideal for use in solar applications. The Seiko Instruments TS920E provides sufficient discharge capacity with a charge voltage of less than 2.0V. TS920E offers a long cycle life of at least 1000 cycles.
Features
- Low-voltage rechargeable
- High Capacity
- Long cycle life
- RoHs Compliant
Specifications
- 1.6V to 3.0V nominal voltage
- 2.3V to 1.0V, 5.5mAh nominal capacity
- 5µA discharge rate
- 20Ω internal impedance
- 0.05mA standard charge-discharge current
- 50 cycles life (100% depth of discharge)
- 1000 cycled life (20% depth of discharge)
- 9.5mm diameter
- 2.0mm height
- 0.45g weight

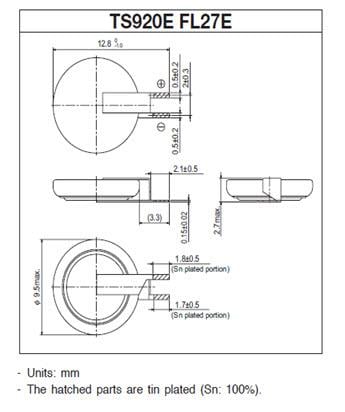

Dimensions
