STMicroelectronics EVSTGAP2GS Demonstration Board
STMicroelectronics EVSTGAP2GS Demonstration Board is engineered to evaluate the STGAP2GS isolated single gate driver. The STGAP2GS comprises 2A source/3A sink capability and rail-to-rail outputs. These features make the device ideal for mid and high-power inverter applications. The device independently optimizes turn-on and turn-off by using dedicated gate resistors.
The STMicro EVSTGAP2GS board enables evaluation of all the STGAP2GS options driving the SGT120R65AL 75mΩ, 650V e-Mode GaN transistors. The board components are easy to access and modify, making driver performance evaluation easier under different application conditions and fine adjustment of final components.
Features
- Device
- High voltage rail up to 1200V
- 2A/3A source/sink at +25°C, VH = 6V Driver current capability
- Separate sink and source for easy gate-driving configuration
- 45ns Input-output propagation delay
- UVLO function optimized for GaN
- Gate driving voltage up to 15V
- 3.3V, 5V TTL/CMOS inputs with hysteresis
- Temperature shut-down protection
- Board
- Half bridge configuration, high voltage rail up to 650V
- SGT120R65AL with 650V, 75mΩ typ., 15A, e-mode PowerGaN transistor
- Negative gate driving
- On-board isolated DC-DC converters to supply high-side and low-side gate drivers, fed by VAUX = 5V, with 5.2kV maximum isolation
- VDD logic supplied by on-board 3.3V or VAUX = 5V
- +6V/0V; +6V/-3V Easy jumper selection of driving voltage configuration
Associated Products
STMicroelectronics STGAP2GSN Isolated 3A Single Gate Driver
This device isolates the gate driving channel, low voltage control, and interface circuitry.

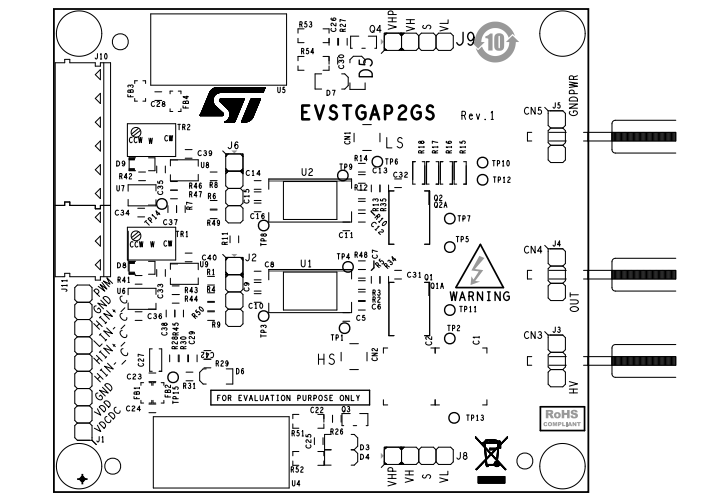

Component placement top
