EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators

TDK B58004 Passivated High Active Stack (HAS) Multilayer Piezo Actuators offer a highly efficient, robust design that avoids polarization cracks with the help of small insulation zones. The B58004 modules are made of RoHS-compatible lead zirconate titanate (PZT) with an internal copper electrode. The actuators provide high cycle stability at high temperatures, a high melting metal bond, and resistance against humidity. Other features include copper inner electrodes, 160V polarization, and a -10V to +180V voltage range in a ceramic body available in a variety of dimensions. TDK B58004 Passivated HAS Multilayer Piezo Actuators are ideal for nanopositioning systems, high-precision valve control for liquids and gases, and bonding wire machines.

Features

  • High Active Stacks (HAS) technology
  • Highly efficient actuator design with small insulation zones
  • Copper inner electrodes for superior robustness against humidity and cost-effectiveness
  • Lead-free high melting metal bond for operation at high temperatures
  • Minimized inactive areas for higher performance, longer lifetime, and compact design
  • Robust design that avoids polarization cracks
  • High reliability
  • High cycle stability at high temperatures
  • Outstanding resistance against humidity

Specifications

  • 1µF to 6.3µF capacitance range
  • >40MΩ insulation resistance
  • -10V to +180V voltage range
  • RoHS-compatible lead PZT ceramic with a high coupling factor
  • Copper inner electrodes
  • Passivated stack
  • Polarized with 160V
  • Contains SVHC substance 12626-81-2
  • -40°C to +160°C surface temperature range

Applications

  • Nanopositioning systems
  • High-precision valve control for liquids and gases
  • Bonding wire machines

Performance Graphs

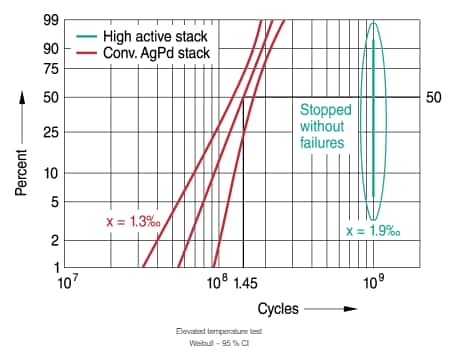

Performance Graph - EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators
Performance Graph - EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators
Performance Graph - EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators
View Results ( 5 ) Page
Mã Phụ tùng Bảng dữ liệu Chiều dài Tần số tự cộng hưởng Lực vận hành Định mức điện áp Khoảng chạy Kiểu chấm dứt Nhiệt độ làm việc tối thiểu Điện trở
B58004M4037A020 B58004M4037A020 Bảng dữ liệu 7 mm 2600 N - 10 V to 180 V 55 um SMD/SMT - 40 C
B58004M4040A020 B58004M4040A020 Bảng dữ liệu 5.2 mm 30 kHz 1400 N - 10 V to 180 V 83 um SMD/SMT - 40 C
Z63000Z2910Z001Z77 Z63000Z2910Z001Z77 Bảng dữ liệu 3.4 mm 48 kHz 600 N - 10 V to 180 V 47 um Wire Leads - 40 C
Z63000Z2910Z001Z78 Z63000Z2910Z001Z78 Bảng dữ liệu 5.2 mm 165 kHz 1400 N - 10 V to 180 V 16 um - 40 C
B58004M4030A020 B58004M4030A020 Bảng dữ liệu 30 mm 44 kHz 1400 N - 10 V to 180 V 55 um - 40 C 40 MOhms
