Vishay Semiconductors VOR1003M4 Solid State Relay

Vishay Semiconductors VOR1003M4 Solid State Relay is an optically isolated 1 form A solid-state relay in a surface-mount 4-pin SOP package. This relay features a 30V load voltage, 5A continuous load current, 0.7Ω low ON resistance, and 3750 VRMS isolation test voltage. The VOR1003M4 solid-state relay offers fast switching actions with a ton of 1.5ms (typical) and toff of 0.15ms (typical). This relay is used in security systems, instrumentation, and industrial control applications.

Features

  • 0.7Ω low ON-resistance (RON) (typical)
  • 30V peak AC load voltage (VL)
  • 5A continuous load current (IL)
  • 3750VRMS isolation voltage
  • 50mA LED continuous forward current (IF)
  • 5V LED reverse voltage (VR)
  • 800mW total power dissipation (Pd)
  • Small 4-pin SOP package
  • Fast switching:
    • ton = 1.5ms (typical)
    • toff = 0.15ms (typical)
  • Low leakage current ILEAK < 1μA (typical)
  • Pb-free and Halogen-free
  • RoHS compliant

Applications

  • Security systems
  • Instrumentation
  • Industrial controls

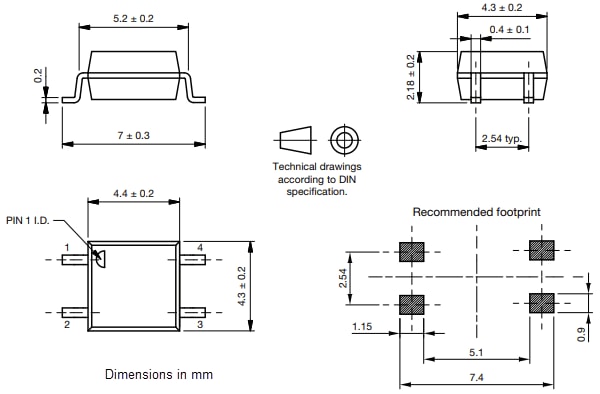

Package Dimensions

Mechanical Drawing - Vishay Semiconductors VOR1003M4 Solid State Relay
