Microchip Technology PIC32CM-PL10 Low-Power Arm® Cortex®-M0+ Based MCUs
Microchip Technologies PIC32CM-PL10 Low-Power Arm® Cortex®-M0+ Based MCUs offer a balanced combination of performance, power efficiency, and peripherals, making them an attractive choice when transitioning a design from an 8-bit MCU to a 32-bit MCU. The PIC32CM-PL10 family is pin-compatible with the AVR Dx families of 8-bit MCUs, so users can easily migrate from AVR MCU-based hardware designs. These MCUs feature familiar peripherals found on 8-bit MCUs, including Multi-Voltage I/O (MVIO), Configurable Custom Logic (CCL), and Event System (EVSYS). These peripherals reduce the BOM and PCB footprint to create compact and cost-efficient designs.
The combination of 5V operation and integrated analog peripherals, such as the Peripheral Touch Controller (PTC), Analog-to-Digital Converter (ADC), and Analog Comparators, makes these Microchip PIC32CM-PL10 MCUs more robust and more immune to noise.
Features
- Arm Cortex-M0+ core with speeds up to 25MHz across the supply voltage of 1.8V to 5.5V
- Up to 128KB Flash, 16KB SRAM
- 20-, 28-, 32-, and 64-pin packages
- PTC supporting up to 29 self-capacitance channels
- MVIO
- Three serial communication interfaces (SPI, I2C, USART)
- Four-channel EVSYS
- CCL
- One 12-bit differential and single-ended ADC
- Three 16-bit basic Timer/Counters (TCs)
- One 16-bit Timer/Counter for Control (TCC) with four PWM channels
- One watchdog timer
- Two analog comparators
- External crystal oscillator with failure detection
- 1.8V to 5.5V operating voltage
- Temperature ranges
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
Applications
- Capacitive touch
- Appliances and industrial designs in noisy environments
- Companion MCU to larger MCUs or MPUs
- Battery-powered devices

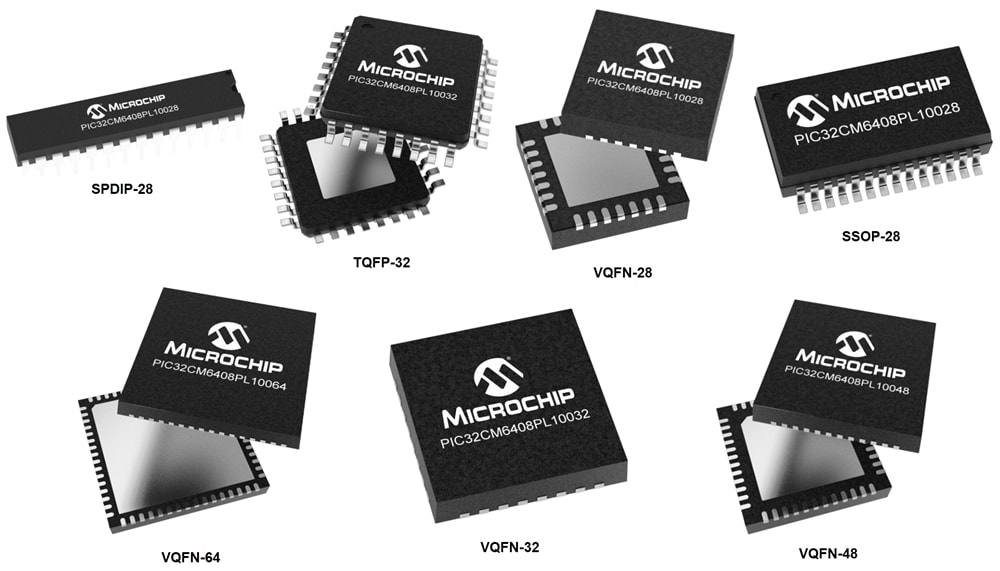

Packages

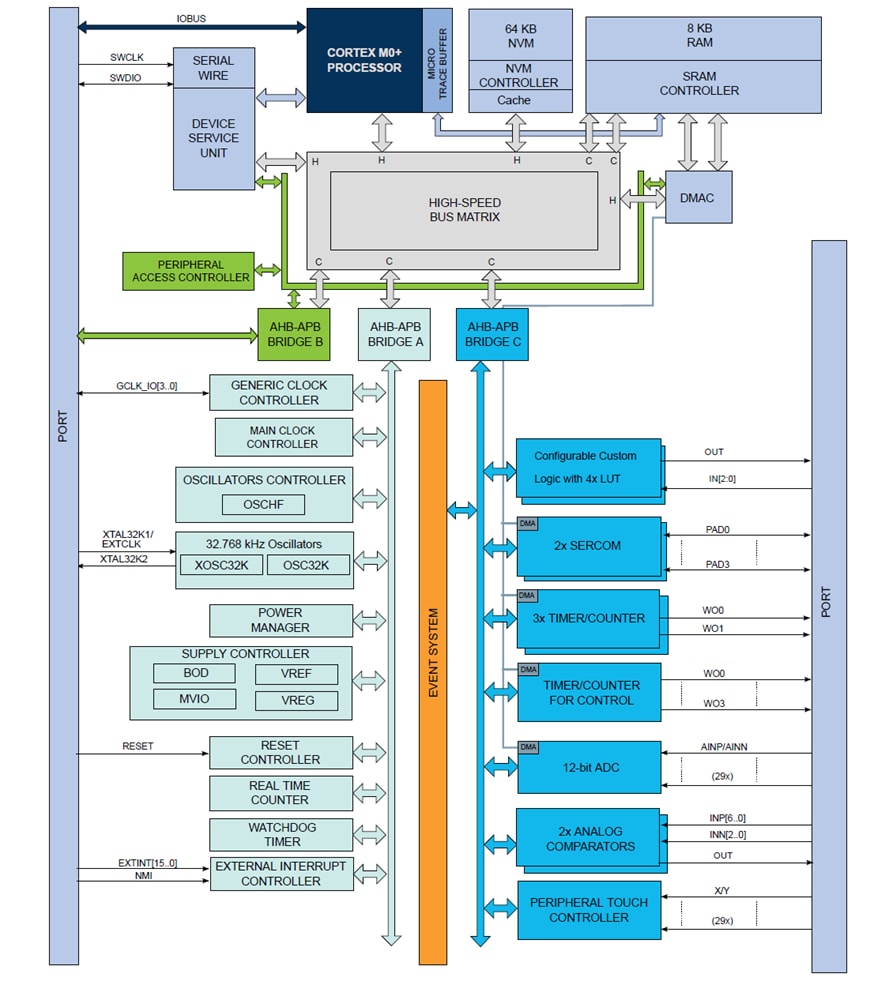

Block Diagram
Development Tools
Microchip Technology PIC32CM PL10 Curiosity Nano Evaluation Kit
Hardware platform for evaluating the PIC32CM PL10 MCU with programming and debugging capabilities.
Microchip Technology Bộ công cụ lập trình/Bộ gỡ lỗi trong mạch MPLAB® PICkit™ 5
Cho phép tạo nguyên mẫu nhanh và lập trình sẵn sàng cho sản xuất, di động cho tất cả các cấu phần Microchip.
Microchip Technology Curiosity Nano Base for Click Boards™ (AC164162)
Designed to ease the connection between Curiosity Nano Kits and Mikroe Click Boards™.
Microchip Technology EV58G97A Curiosity Nano Explorer Board
Explore and test the functionality of microcontroller peripherals with the Curiosity Nano.
