ams OSRAM DURIS® S 5050 LEDs
ams OSRAM DURIS® S 5050 LEDs offer an impressive efficacy performance and are DLC premium certified for long-term reliability. These LEDs are designed with a 120° viewing angle and come with a color temperature ranging from 2200K to 6500K. The DURIS S 5050 LEDs feature a Color Rendering Index (CRI) of 70 (minimum) and offer 2kV ESD in accordance with ANSI/ESDA/JEDEC JS-001 (HBM) standards. The 5050 leadframe package offers a perfect solution for high-efficacy and compact luminaire designs for outdoor professional lighting, high-bays, streetlights, area lights, and flood lights.
Features
- 120° viewing angle (Lambertian emitter)
- 2200K to 6500K color temperature range
- White SMT package with colored diffused silicone resin
- 70 Color Rendering Index (CRI) (minimum)
- 2kV ESD in accordance with ANSI/ESDA/JEDEC JS-001 (HBM)
- 219lm (typical) luminous flux @ 4000K @ 25°C
- 220lm/W (typical) luminous efficacy @ 4000K @ 25°C
- -40°C to 105°C operating temperature range
- 800mA (maximum) forward current
Applications
- Indoor lighting
- Outdoor lighting
- Street lights
- High bays
- Flood lights
- Industrial lighting

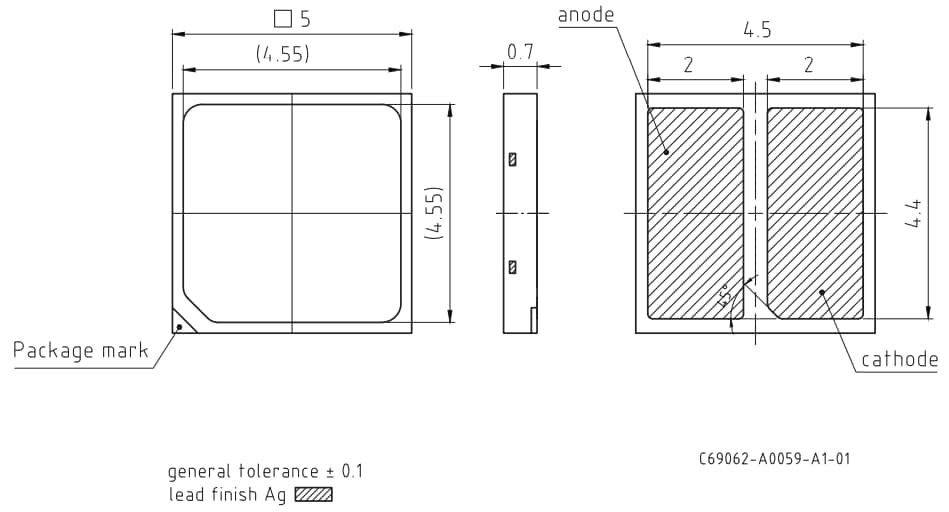

Dimensions Drawing (mm)
Related LEDs
ams OSRAM DURIS® S 8 (5050) LEDs
Compact high-power LEDs with high luminous flux, high forward voltage, and high color consistency.
ams OSRAM DURIS® E5 LEDs (Version 3.2)
Deliver high efficacy and a wide 120º beam angle in a compact 5.6mm x 3mm form factor.
ams OSRAM DURIS E 2835 LEDs
SMT LEDs featuring good efficacy, a wide viewing angle, and an industry-standard footprint.
ams OSRAM DURIS® E 2835 Color LEDs
Feature excellent color rendering and supreme efficacy in a 2.8mm x 3.5mm² PCT package.
ams OSRAM Đèn LED Softlinear DURIS® E2835 0,2 W
Designed for high-quality interior lighting concepts and designs.
ams OSRAM DURIS® S 8 GW P9LR35.PM Gen5
Provides impressive efficacy performance combined with DLC Premium Lifetime achievement.
ams OSRAM DURIS® S 5 Horticulture LEDs
Offers purple, neutral white, and cool white illumination colors for horticultural lighting.
ams OSRAM DURIS® E 5050 RGBW LEDs
Offers a 4-in-1 color package for general lighting applications.
ams OSRAM GW-P9LR34PM DURIS® S8 LEDs
Compact high power LEDs with high luminous flux, high forward voltage, and high color consistency.
ams OSRAM DURIS® S 5 PSLM Mid-Power LEDs
Single color LEDs available in orange, amber, blue, red, green, and white illumination colors.
| Mã Phụ tùng | Bảng dữ liệu | Thông lượng sáng/Thông lượng bức xạ | Bước sóng/Nhiệt độ màu | Ff - Điện áp thuận | If - Dòng thuận | Góc xem | Chỉ số kết xuất màu - CRI | Màu chiếu sáng | Chiều dài | Chiều rộng | Chiều cao | Đóng gói | RoHS - Mouser |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GW P9LR38.PM-M2M5-XX58-1 |  |
190 lm | 2700 K | 22 V | 45 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR38.PM-M3M8-XX51-1 | |
200 lm | 6500 K | 22 V | 45 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR37.PM-L9M5-XX510-1 | |
170 lm | 2200 K | 5.53 V | 180 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR37.PM-M2M5-XX58-1 | |
190 lm | 2700 K | 5.53 V | 180 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR37.PM-M3M8-XX56-1 | |
200 lm | 3500 K | 5.53 V | 180 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR37.PM-M3M8-XX57-1 | |
200 lm | 3000 K | 5.53 V | 180 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR37.PM-M4M8-XX53-1 | |
210 lm | 5000 K | 5.53 V | 180 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR38.PM-M3M8-XX56-1 | |
200 lm | 3500 K | 22 V | 45 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR38.PM-M4M8-XX53-1 | |
210 lm | 5000 K | 22 V | 45 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
| GW P9LR38.PM-M4M8-XX55-1 | |
210 lm | 4000 K | 22 V | 45 mA | 120 deg | 70 | White | 5 mm | 5 mm | 0.7 mm | Reel | Y |
